Electric Water Control Steam Solenoid Valve 1 Inch
With our leading technology at the same time as our spirit of innovation, mutual cooperation, benefits and growth, we're going to build a prosperous future together with your esteemed firm for York Screw Chiller, ULVAC PVD-N180, Hot Water Type Electric Control Valve. Our enterprise spirit is the unremitting pursuit of perfection, to provide customers with better products and more intimate after-sales service. We've got more than 10 years experience of production and export business.
AVF series electric control valves are widely used in automatic control of air-conditioning, refrigeration, heating and other buildings. At the same time, it is also suitable for the automatic control system of the production process in the chemical industry, petroleum, metallurgy, electric power, light industry and other industries.
The regulating valve of DN20-DN150 diameter adopts the RA-300 electric actuator of American Johnson Company.
AVF-5000 series of electric control valves are suitable for cold, hot water, steam and other non-corrosive media: low-temperature control valves are suitable for low-temperature media such as ethylene glycol, and are mainly used for temperature control systems in cold storage.
Features
AC synchronous motor: low power consumption, low noise, precise action.
Combined floating spring: constant sealing force, reliable overload protection.
Control signal: analog input 0-10V, 4-20mA; switch value.
Stuffing box sealing: reliable and no leakage.
Pipe connection: standard flange, easy to install.
Valve diameter: DN20-DN350.
Balance valve structure: suitable for high allowable pressure difference and steam medium.
Low-temperature control valve: used for low-temperature media such as ethylene glycol.
Technical parameters of electric actuator
Basic parameters of control valve
Nominal pressure (MPa) 1.6
Body material: cast iron, cast steel, cast stainless steel
Valve core and seat material: stainless steel
Leakage Two-way valve <0.01% Balance valve <0.5% Three-way valve <0.1%
Flow characteristic equal percentage straight line
Medium water, steam, glycol...
Medium temperature: common type (2~180)℃; high temperature type (2~220)℃; high temperature type I (2-280)℃; high temperature
Ⅱ type (2-380) ℃; high temperature Ⅲ type (2-500) ℃; low temperature type (-20~180) ℃
Internal schematic diagram of electric actuator structure
Dimensions
The composition of the electric control valve
The electric control valve is composed of two parts, an electric actuator and a valve body, and the two parts are connected into one body by a connecting clamp and a lock nut.
Installation and maintenance
1) The pipeline should be cleaned before installation, and a filter and drain valve should be installed on the inlet side of the valve to remove grit, rust and other impurities.
2) The connection between the valve body flange and the pipeline should be naturally coaxial to avoid shear stress, and the connecting bolts should be evenly locked.
3) When installing, pay attention to the direction of the arrow on the valve body to be consistent with the flow direction of the medium.
4) A space greater than 30mm should be reserved around the valve body for installation, disassembly and maintenance.
5) It must be installed vertically when in use. Valves below DN80 can be installed inclined or horizontally on special occasions. However, when the volume, weight, and vibration are too large, a support must be installed.
6) In important occasions, bypass pipelines should be added to prepare for manual operation in case of failure or maintenance.
7) The valve body needs to be insulated like the pipeline, and the electric actuator cannot be insulated. Especially when it is applied to high temperature medium, the heat preservation of the valve body part should be strengthened. Otherwise, because the ambient temperature is too high, it will affect the normal operation of the electric actuator.
8) The electric actuator must not be immersed in water, and the wiring must comply with the relevant national on-site construction regulations.
9) Before energizing, please check the power supply voltage required by the electric actuator to avoid damage to the motor.
10) The user should check the lubrication status of the electric actuator transmission gear at least once a year. If lubricating grease is found to be dry, add it immediately.
11) The user should regularly check whether there is any leakage at the seal of the regulating valve. If there is any leakage, immediately tighten the fastening screws or replace the seals.
Installation steps

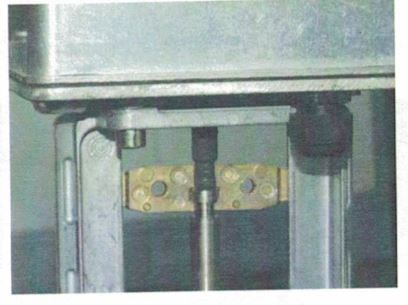

1. Loosen the tightening screw of the actuator connecting splint with a No. 5 hex wrench and remove it: Remove the actuator connecting splint and the lock nut;
2. Use the connecting splint to cover the head of the valve stem and lift it up, and lift the valve stem;
3. Put the valve connection port at the lower end of the actuator bracket on the top of the valve body, but don't put it down;
4. Put the lock nut of the actuator bracket on the valve stem;
5. At this time, put the actuator bracket to the end. If the valve stem leaks high and cannot be placed in the bottom, lightly press the top of the actuator cover to press it to the bottom.
6. Check that the joint between the valve stem and the actuator connecting rod should fit tightly and without gaps. If yes, you can proceed to the next step; if not, you need to raise the actuator slightly, clamp the stem head with the actuator connecting splint to raise the stem, and then lower the actuator to observe whether there is a gap in the joint, otherwise repeat the above The operation process until appropriate.
7. Face the actuator bracket and observe whether the fixing plane on the side of the lower end of the actuator connecting rod is vertical. If it is not vertical, remove the upper cover of the actuator, use a No. 10 wrench to loosen the fixing nut on the top of the screw, and then rotate the actuator screw by hand to make the above-mentioned connecting plane vertical.
8. Install the actuator splint at the connecting part of the connecting rod and the valve stem, install the splint fastening screw, but do not tighten it: pay attention to the direction when installing the splint, the big end clamps the valve stem head, the small end covers the connecting rod head, and it must be attached. tight.
9. Tighten the lock nut by hand, and then press the copper rod against the convex end of the lock nut, and knock the copper rod clockwise with a hammer to gradually tighten the lock nut.
10. Use a No. 5 Allen wrench to tighten the clamping plate fastening screws.
11. Check whether the stroke adjustment shaft is inserted into the feedback fan ruler slot, if not, reinsert it into the feedback fan ruler slot, and tighten the fixing nut on the top of the lead screw.
12. If the zero-point feedback error is large, use a screwdriver to adjust the feedback potentiometer clockwise to adjust the shaft to the end, so that the resistance between the purple wire box and the gray wire of the potentiometer is less than 10Ω.
Large Warehouse For Lithium Bromide Accessories
As a central air conditioning after-sales service enterprise, Flier Refrigeration established a warehousing sales model in 2010, providing emergency product accessories for domestic and foreign users, greatly reducing the waiting time caused by damaged accessories for users.
The company currently has components used by well-known domestic and foreign host brands such as Jiangyin Shuang Liang, Dalian Panasonic, Changsha Aboard, Yantai Ebara, Qingdao LG, American Trane, York, Carrier, etc., including over a thousand types of commonly used central air conditioning components such as imported vacuum pumps, shielded pumps, burners, electric two-way valves, and control components.
Vacuum pump
The vacuum pump used in the refrigerator is an important equipment for maintaining the vacuum of the unit, with high frequency of use, frequent replacement of consumables, and easy damage. Therefore, users often have acute demands for vacuum pumps. Flier Warehousing and Logistics Center has hundreds of sets of vacuum pumps in stock, as well as a large amount of original vacuum pump oil, including well-known brands such as ulvac and Foster. The original packaging and models are complete, ensuring high-quality products while meeting user needs. And Flier's unique component warehousing sales model can effectively meet users' acute needs for products. Quickly match component brands, models, consumables, basic parameters, etc., and quickly and effectively stock and ship through a dedicated warehousing and logistics system.
Canned pump
The shielded pump used in the refrigerator is a leak free pump required in refrigeration engineering. The body structure is a static sealed structure, which has functions such as corrosion prevention and zero leakage. It also has advantages such as low vibration and noise, high pump efficiency, and low energy consumption.
As an important component of refrigeration units, shielded pumps, like vacuum pumps, are frequently used and vulnerable components. However, contacting the original factory for procurement, stocking, and shipping after damage will take a long time, during which the unit will be basically in a shutdown state, causing greater economic losses to users.
The Flier Warehouse and Logistics Center currently has hundreds of original canned pumps, mainly branded as Dalian Teikoku and Hefei Xinhu. The original supply, complete models, quality assurance, fast delivery, and direct logistics minimize customer waiting time, fully meeting customer needs.
Other components
In addition to the important components required for refrigeration units, Flier Refrigeration Parts Warehouse Sales also has a wide range of spare parts inventory, including but not limited to: various models of valves, burners, control motherboards, displays, sensing components, and related accessories. Brand names include: Siemens from Germany, Taicang from France, Trane from the United States, York, Carrier, Honeywell, Macwell, Lu gong from Japan, Fuji, Yamamoto, CKD Famous domestic and foreign brands such as Yamamoto Instruments, Omron, Beijing ACT, Shanghai Ju liang, and Taiwan An liang. At the same time, Fuller Refrigeration also has a self-developed filter device for refrigerators, which is widely used in all kinds of lithium bromide absorption units, and is authorized by the China National Intellectual Property Administration to obtain the patent of Fuller refrigerant self-cleaning device. This product adopts membrane filtration technology and is installed on the solution circulation system of the unit, enabling the unit to perform solution filtration treatment and achieve purification effect under normal operating conditions. The filtering device has high filtering accuracy and simple operation, and the filter element is made of environmentally friendly materials that can be repeatedly rinsed and used.
We will also keep designing and developing new Electric Water Control Steam Solenoid Valve 1 Inch according to the changes of the market, so please keep an eye on it! We will work hard and make unremitting efforts to accelerate our efforts to become a first-class integrated company with global competitiveness. We will make greater efforts to help domestic and international buyers, and create the mutual benefit and win-win partnership between us.
