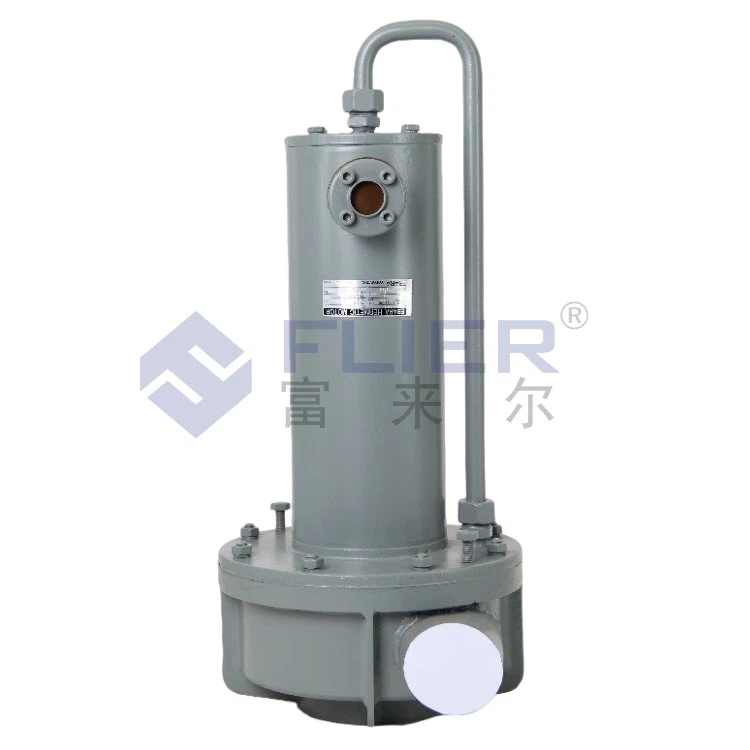

Hermetic Canned Motor Liquid Ammonia Pump for Refrigeration System

We consider carefully at the product design stage, choose reasonable design solutions, and strive to improve product quality of our Panasonic Sanyo Hot Water Absorption Chiller, Centrifugal Chiller, Absorption Chiller Parts. Our company is familiar with the market situation and industry business development, we have rich experience in business, negotiation and contract management. For further more inquiries, remember to usually do not be reluctant to get in touch with us.

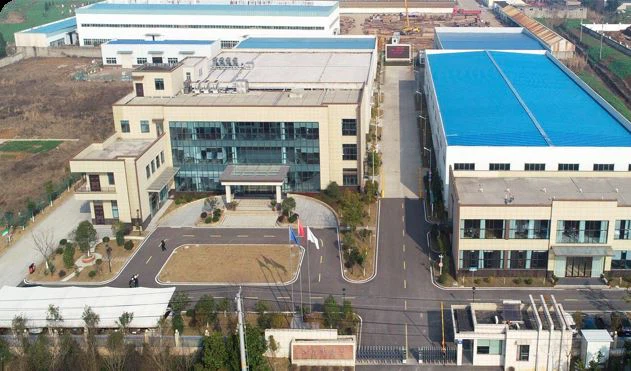

Zhenjiang Fulaier Refrigeration Engineering Technology Co., Ltd. was established in 2003. It is a professional technical service enterprise integrating central air-conditioning host sales, spare parts sales, and unit repair and maintenance.

The company's main business scope includes: custom processing of lithium bromide solution; sales of lithium bromide special filters; sales of central air-conditioning cold-water refrigerators; sales of various parts of central air-conditioning.

The canned motor pump plays the role of conveying medium in the unit. The canned motor pump whose conveying medium is refrigerant water is called refrigerant pump, and the canned motor pump whose conveying medium is lithium bromide solution is called solution pump. The canned motor pump is extremely important in the unit. part.

The canned motor pump is a non-leakage pump, with an integrated structure of the motor and the pump, so that the electric pump is completely leak-free. The appearance and internal structure of different models of canned motor pumps of different brands are quite different, but their working principles are similar.

The canned motor pump has absolutely no leakage, and the outside air will not be sucked in the negative pressure in the pump, which is especially suitable for vacuum system operation.

Commonly used fragile accessories

Graphite bearing/shaft sleeve/thrust plate

Product application occasions: special for Dalian Empire canned motor pump accessories

Product features:

1. High temperature resistance and corrosion resistance;

2. High purity and high density;

3. Long life of oxidized surface;

4. Good wear resistance and lubricity;

5. Heat resistance, shock resistance, excellent electrical conductivity;

High-quality choice, four advantages

Long life/low power consumption/no leakage/high vacuum

Brand trust, mature technology

Easy to install and provide support (using welding form, easy to install)

Smooth operation, low failure rate (close internal structure, few vulnerable parts, low failure rate)

Product details

Complete models, widely applicable

Standard caliber, easy to install

Low noise, no need for manual refueling

Product display

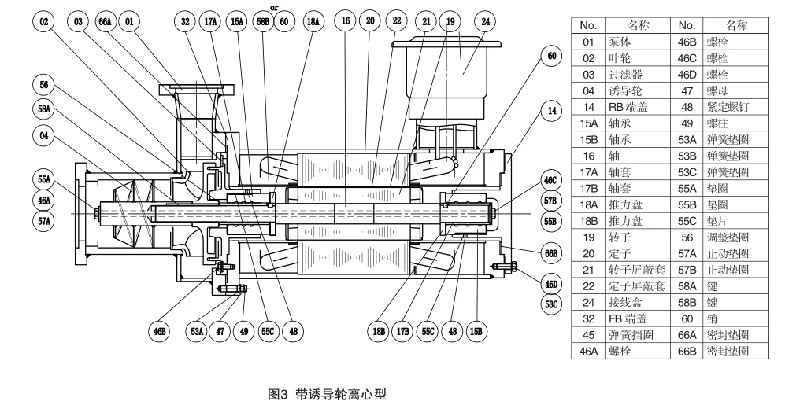

Centrifugal canned motor pump with inducer

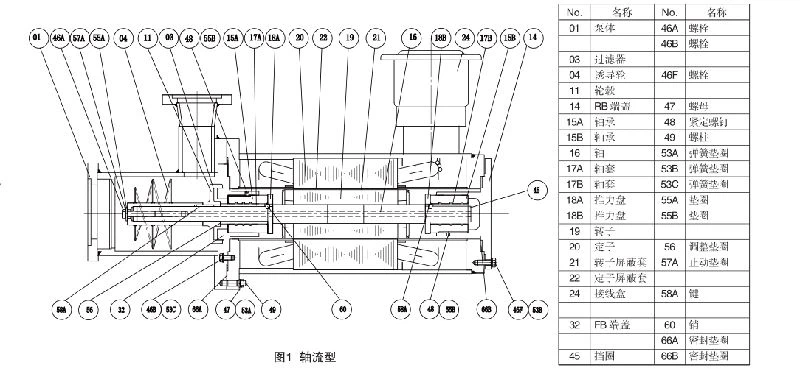

Axial flow canned motor pump

Requirements

1. No-load operation is strictly prohibited.

2. The solid foreign matter in the device should be thoroughly removed before operation.

3. Cut-off operation shall not last for 1 minute. Do not continue to operate in the reverse direction.

4. During operation, if abnormal sound or vibration is found, the cause should be quickly found out and the fault should be eliminated thoroughly.

5. When the protective device is operating, it is not allowed to continue operation until the cause of the action is found out and the fault is completely eliminated.

6. When the operation is stopped, the medium in the pump may freeze, and preventive measures should be taken.

7. The normal working condition of the pump must be within the required performance parameter range.

8. It is strictly forbidden to open the cover in the WeChat place with power on. When repairing, pay attention to the protection of the explosion-proof surface. The cable introduction requires that the sealing ring should be tightly pressed with the cable.

Our company always takes service and honesty as its tenet, and pays attention to the development of high-tech Hermetic Canned Motor Liquid Ammonia Pump for Refrigeration System. Through R&D, production, logistics, marketing, sales and international expansion, we ensure the implementation of our overall strategy from all aspects. We also offer product sourcing and flight consolidation services.
