Lithium Bromide Special Impurity Remover

Follier Cleaner

Flyer's patented product, online filtration, practical and convenient

Basic technical parameters

Model FL-3000 FL-6000

Processing capacity 15L/h 3000L/h

Processing accuracy 0.1-0.2um 0.1-0.2um

Filter element model PE30-3 PE30-6

Filter element material Ceramic filter element Ceramic filter element

Number of filter elements 3 roots 6 roots

Packing specification 95*40*40 98*53*42

Product gross weight 50KG 74KG

Material The body of the equipment is made of 316 steel, and the sealing gasket is made of oil-resistant, acid- and alkali-resistant fluorine rubber gasket

Commonly matched products

Dedicated filter element for trash remover

Photos of Filter Element Product Delivery

Basic technical parameters

Product name PE powder sintered filter element

Height 304mm

Outer diameter 62mm

Inner diameter 28mm

Filter accuracy 0.1-0.2um

Product features Smooth and clean, no impurities; good toughness and hardness; will not break, will not fall off; acid and alkali resistance, good mechanical properties

Scope of application Dedicated filter element for trash remover

Features

●The lithium bromide solution in the machine can be purified without affecting the use of the unit.

●The core structure and blowback design, the filter element has a longer service life and lower operating costs.

●The main material is made of 316 stainless steel.

●The valve adopts a special valve to ensure air tightness. Or it can be connected more flexibly with copper tube and high vacuum rubber tube combination.

Usage notice

1 When receiving the product, please confirm that the product is consistent with the customized product and whether it is damaged during transportation;

2 In order for you to use this product more safely and effectively, please read this manual carefully before using it in order to use the impurity remover correctly;

3 Before installing and disassembling this product, please close the valve on the body of the unit, and apply a flat pressure treatment to the impurity separator;

4 Use a special joint or vacuum rubber tube to connect this product to the unit, the connection method is shown in appendix 1;

Precautions

1 Pay attention to air tightness when using this product

2 Pay attention to wearing protective gloves and protective glasses during operation to prevent the lithium bromide solution from splashing and causing bodily injury. After the lithium bromide solution accidentally enters the eyes, rinse with plenty of water.

3 Strictly follow this manual during operation, and please contact our company when replacing parts.

4 When transporting this product, it should be fixed and stably transported mechanically.

Serial number Part name

1 Return valve of impurity separator

2 Cleaner back blow valve/exhaust valve

3 Drain valve of impurity separator

4 Inlet valve of impurity separator

5 Unit concentrated solution sampling valve

6 Unit dilute solution sampling valve

7 Unit dilute solution pump

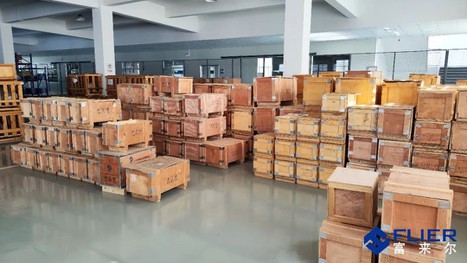

Large warehouse for lithium bromide accessories

As a central air conditioning after-sales service enterprise, Flier Refrigeration established a warehousing sales model in 2010, providing emergency product accessories for domestic and foreign users, greatly reducing the waiting time caused by damaged accessories for users.

The company currently has components used by well-known domestic and foreign host brands such as Jiangyin Shuang Liang, Dalian Panasonic, Changsha Aboard, Yantai Ebara, Qingdao LG, American Trane, York, Carrier, etc., including over a thousand types of commonly used central air conditioning components such as imported vacuum pumps, shielded pumps, burners, electric two-way valves, and control components.

Vacuum pump

The vacuum pump used in the refrigerator is an important equipment for maintaining the vacuum of the unit, with high frequency of use, frequent replacement of consumables, and easy damage. Therefore, users often have acute demands for vacuum pumps. Flier Warehousing and Logistics Center has hundreds of sets of vacuum pumps in stock, as well as a large amount of original vacuum pump oil, including well-known brands such as ulvac and Foster. The original packaging and models are complete, ensuring high-quality products while meeting user needs. And Flier's unique component warehousing sales model can effectively meet users' acute needs for products. Quickly match component brands, models, consumables, basic parameters, etc., and quickly and effectively stock and ship through a dedicated warehousing and logistics system.

Canned pump

The shielded pump used in the refrigerator is a leak free pump required in refrigeration engineering. The body structure is a static sealed structure, which has functions such as corrosion prevention and zero leakage. It also has advantages such as low vibration and noise, high pump efficiency, and low energy consumption.

As an important component of refrigeration units, shielded pumps, like vacuum pumps, are frequently used and vulnerable components. However, contacting the original factory for procurement, stocking, and shipping after damage will take a long time, during which the unit will be basically in a shutdown state, causing greater economic losses to users.

The Flier Warehouse and Logistics Center currently has hundreds of original canned pumps, mainly branded as Dalian Teikoku and Hefei Xinhu. The original supply, complete models, quality assurance, fast delivery, and direct logistics minimize customer waiting time, fully meeting customer needs.

Other components

In addition to the important components required for refrigeration units, Flier Refrigeration Parts Warehouse Sales also has a wide range of spare parts inventory, including but not limited to: various models of valves, burners, control motherboards, displays, sensing components, and related accessories. Brand names include: Siemens from Germany, Taicang from France, Trane from the United States, York, Carrier, Honeywell, Macwell, Lu gong from Japan, Fuji, Yamamoto, CKD Famous domestic and foreign brands such as Yamamoto Instruments, Omron, Beijing ACT, Shanghai Ju liang, and Taiwan An liang. At the same time, Fuller Refrigeration also has a self-developed filter device for refrigerators, which is widely used in all kinds of lithium bromide absorption units, and is authorized by the China National Intellectual Property Administration to obtain the patent of Fuller refrigerant self-cleaning device. This product adopts membrane filtration technology and is installed on the solution circulation system of the unit, enabling the unit to perform solution filtration treatment and achieve purification effect under normal operating conditions. The filtering device has high filtering accuracy and simple operation, and the filter element is made of environmentally friendly materials that can be repeatedly rinsed and used.

Lithium bromide solution manufacturer

About us

Flier Refrigeration Engineering Technology Co., Ltd is a professional technical service enterprise integrating central air-conditioning host sales, spare parts sales, unit repair and maintenance.

Factory located in Zhenjiang, Jiangsu, covering an area of 25,000 square meters ,and has been built with 1 R&D center, 1 pilot plant, 3 An innovative production, learning, and research base composed of a professional production workshop and its corresponding infrastructure. At present, the company has become a well-known technical service provider in the field of central air conditioning in China.

The company’s main business scope includes: central air-conditioning maintenance, cleaning and technical services; cooling tower and fan coil cleaning and maintenance services; custom processing of lithium bromide solution; sales of lithium bromide solution special impurity separators; central air-conditioning host and various zero Sales of accessories; installation and sales of central air conditioning systems, etc.
