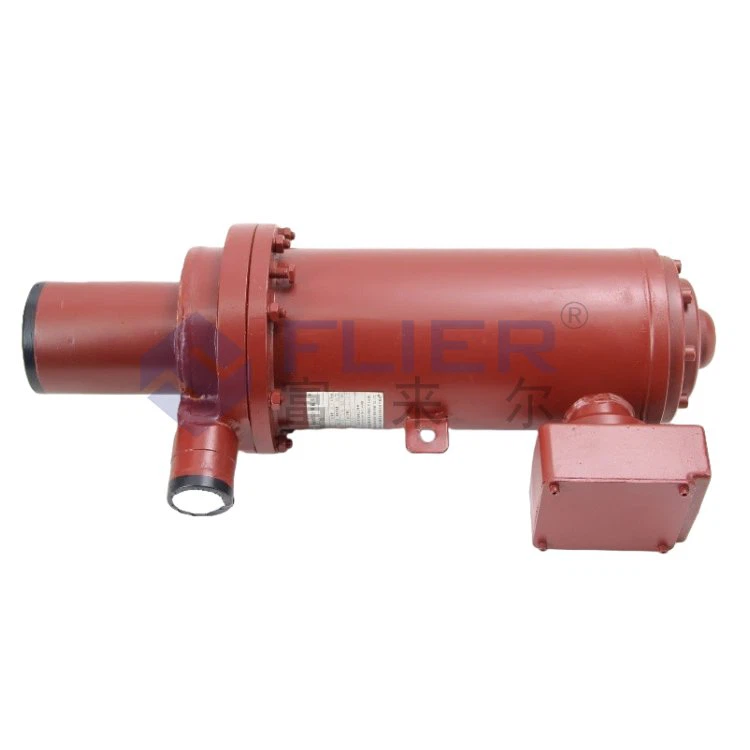

Lithium Bromide Canned Motor Pump

Zhenjiang Fulaier Refrigeration Engineering Technology Co., Ltd. was established in 2003. It is a professional technical service enterprise integrating central air-conditioning host sales, spare parts sales, and unit repair and maintenance.

The company's main business scope includes: custom processing of lithium bromide solution; sales of lithium bromide special filters; sales of central air-conditioning chillers; sales of various parts of central air-conditioning.

The canned motor pump plays the role of conveying medium in the unit. The canned motor pump whose conveying medium is refrigerant water is called refrigerant pump, and the canned motor pump whose conveying medium is lithium bromide solution is called solution pump. The canned motor pump is extremely important in the unit. part.

The canned motor pump is a non-leakage pump, with an integrated structure of the motor and the pump, so that the electric pump is completely leak-free. The appearance and internal structure of different models of canned motor pumps of different brands are quite different, but their working principles are similar.

The canned motor pump has absolutely no leakage, and the outside air will not be sucked in the negative pressure in the pump, which is especially suitable for vacuum system operation.

Commonly used fragile accessories matching

High-quality choice, four advantages

Long life/low power consumption/no leakage/high vacuum

Canned motor pump-Nikkiso

Product details

Japanese machine installed pump: SS211-2.2H-C002

Head 14m, flow 167L/min

Power 1.8KW Frequency 50HZ

Rated current 5A Rated voltage 380V

Japanese machine installed pump: SS221-3.7H-C004

Head 7m, flow 500L/min

Power 3.2KW Frequency 50HZ

Rated current 7.5A Rated voltage 380V

Japanese machine installed pump: S291-1.5H-C015

Head 4m, flow 300L/min

Power 1.5KW Frequency 50HZ

Rated current 5A Rated voltage 380V

Japanese machine installed pump: SS230-3.7H-C010

Head 14m, flow 400L/min

Power 3.7KW Frequency 50HZ

Rated current 8.5A Rated voltage 380V

Japanese machine installed pump: SS491-3.7H-C009

Head 7m, flow 1000L/min

Power 2.6KW Frequency 50HZ

Rated current 10A Rated voltage 380V

Japanese machine installed pump: 16DNS0L002

Head 13.5m flow 350L/min

Power 3KW Frequency 50HZ

Rated current 8.2A Rated voltage 380V

Canned motor pump-Shanghai

Parameter description

Shanghai Pump: PN2-0.75-4C10-7

Head 7m, flow 10m3/H

Power 0.75KW Frequency 50HZ

Rated current 2.8A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-1.1-4C10-7

Head 7m, flow 10m3/H

Power 1.1KW Frequency 50HZ

Rated current 3.5A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-1.5-4C30-7

Head 7m, flow 30m3/H

Power 1.5KW Frequency 50HZ

Rated current 4.5A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-2.2-4C30-7

Head 7m, flow 30m3/H

Power 2.2KW Frequency 50HZ

Rated current 5.99A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-3.7-4C20-14

Head 14m Flow 20m3/H

Power 3.7KW Frequency 50HZ

Rated current 10A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-5.5-4C18-22

Head 22m Flow 18m3/H

Power 5.5KW Frequency 50HZ

Rated current 14A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-7.5-4C40-19

Head 19m, flow 40m3/H

Power 7.5KW Frequency 50HZ

18A rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Shanghai Pump: PN2-9-4C70-14

Head 14m, flow 70m3/H

Power 9KW Frequency 50HZ

Rated current 21A Rated voltage 380V

Transmission medium temperature ≤95 cavitation allowance 0.5m

Canned motor pump-Carrier

Product details

Carrier pump: 16DNL055C-2CH-30SG-1

Power 5.5KW Rated current 15A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16DNL066C-2CH-30SG-1

Power 7.5KW Rated current 18A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16JT080-1701L

Power 3.7KW Rated current 10.5A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16JT090-1701L

Power 4.8KW Rated current 14A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16JT100-1601L

Power 1.5KW Rated current A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16JT847-1701L

Power 5.5KW Rated current 15A

Rated voltage 380V Frequency 50HZ

Carrier pump: 16JT857-1601L

Power 1.5KW Rated current 4.6A

Rated voltage 380V Frequency 50HZ

Canned motor pump-Ebara

Product details

Ebara Pump: RCD 025-9954

Power 3.2KW Rated current 9A

Rated voltage 380V Frequency 50HZ

Ebara Pump: 16JAH040-6754X2

Power 0.75KW Rated current 2.6A

Rated voltage 380V Frequency 50HZ

Ebara pump: 16J AH064-6754X2

Power 3.7KW Rated current 10A

Rated voltage 380V Frequency 50HZ

Ebara pump: 16J CD060-9954

Power 5.5KW Rated current 12.5A

Rated voltage 380V Frequency 50HZ

Ebara pump: 16J AW110-6754X2

Power 1.5KW Rated current 4.9A

Rated voltage 380V Frequency 50HZ

Ebara Pump: RCD CD040-9954

Power 3.7KW Rated current 10A

Rated voltage 380V Frequency 50HZ

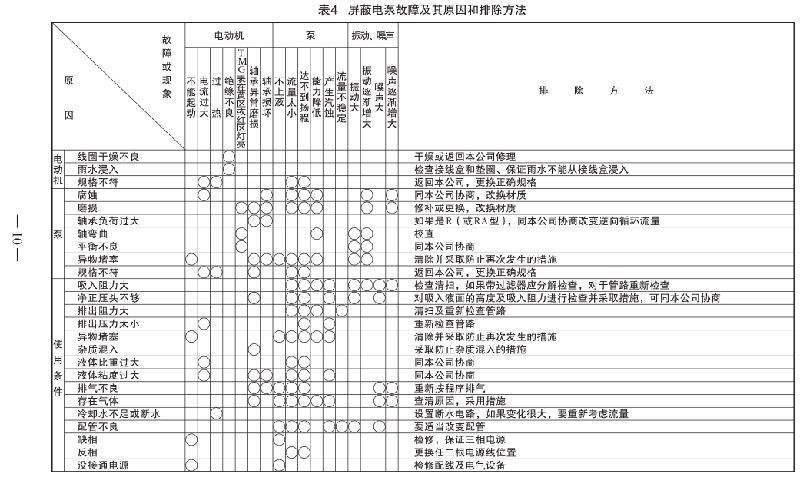

Canned motor pump failure and its cause and discharge method
